Jazz Replacement Monochrome LCD Backlit Graphic COG 128×64 Arduino Touch Panel
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Jazz |
| MPN | JAZZ-AE-W |
| Resolution | 128 x 64 |

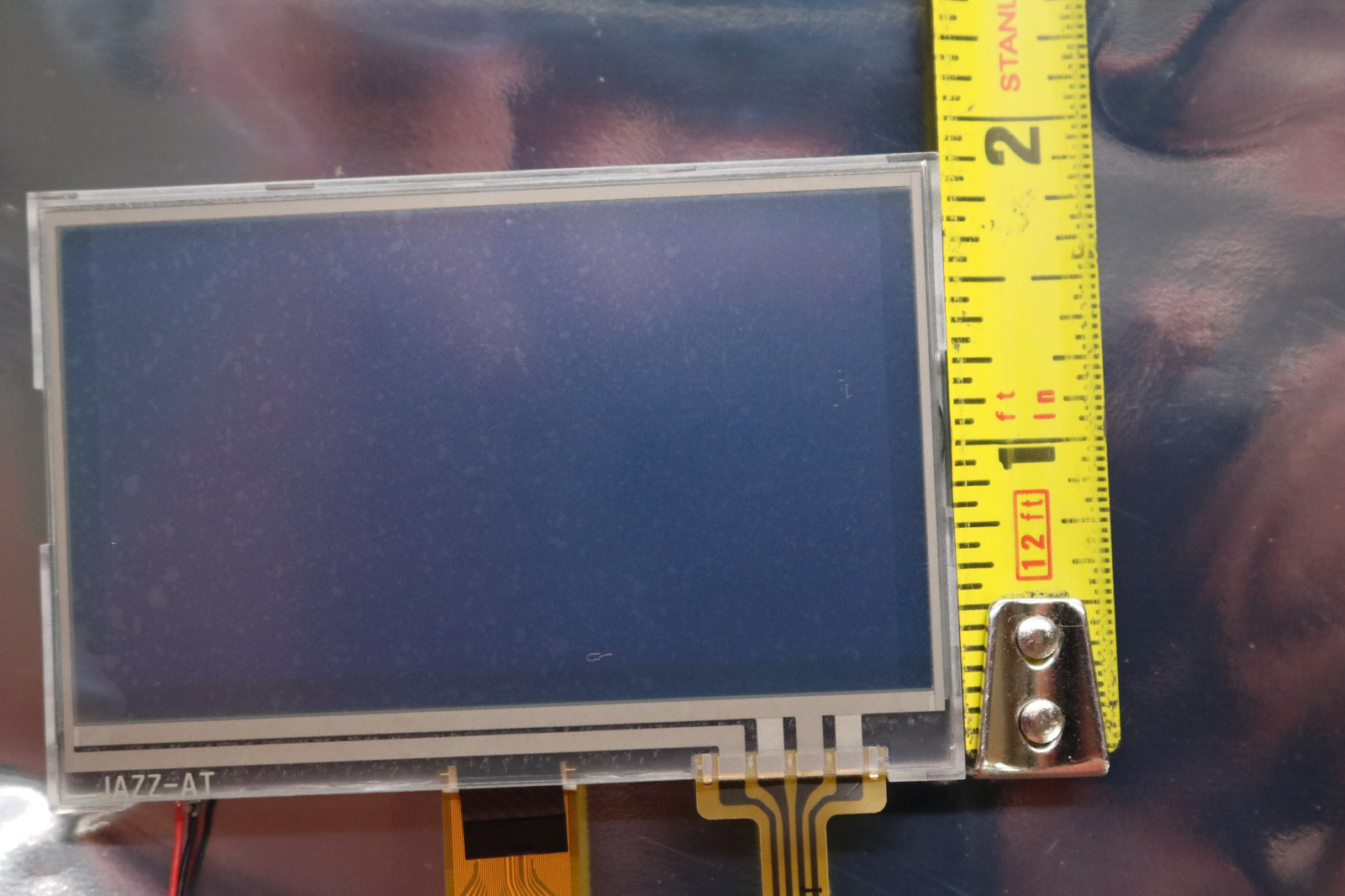

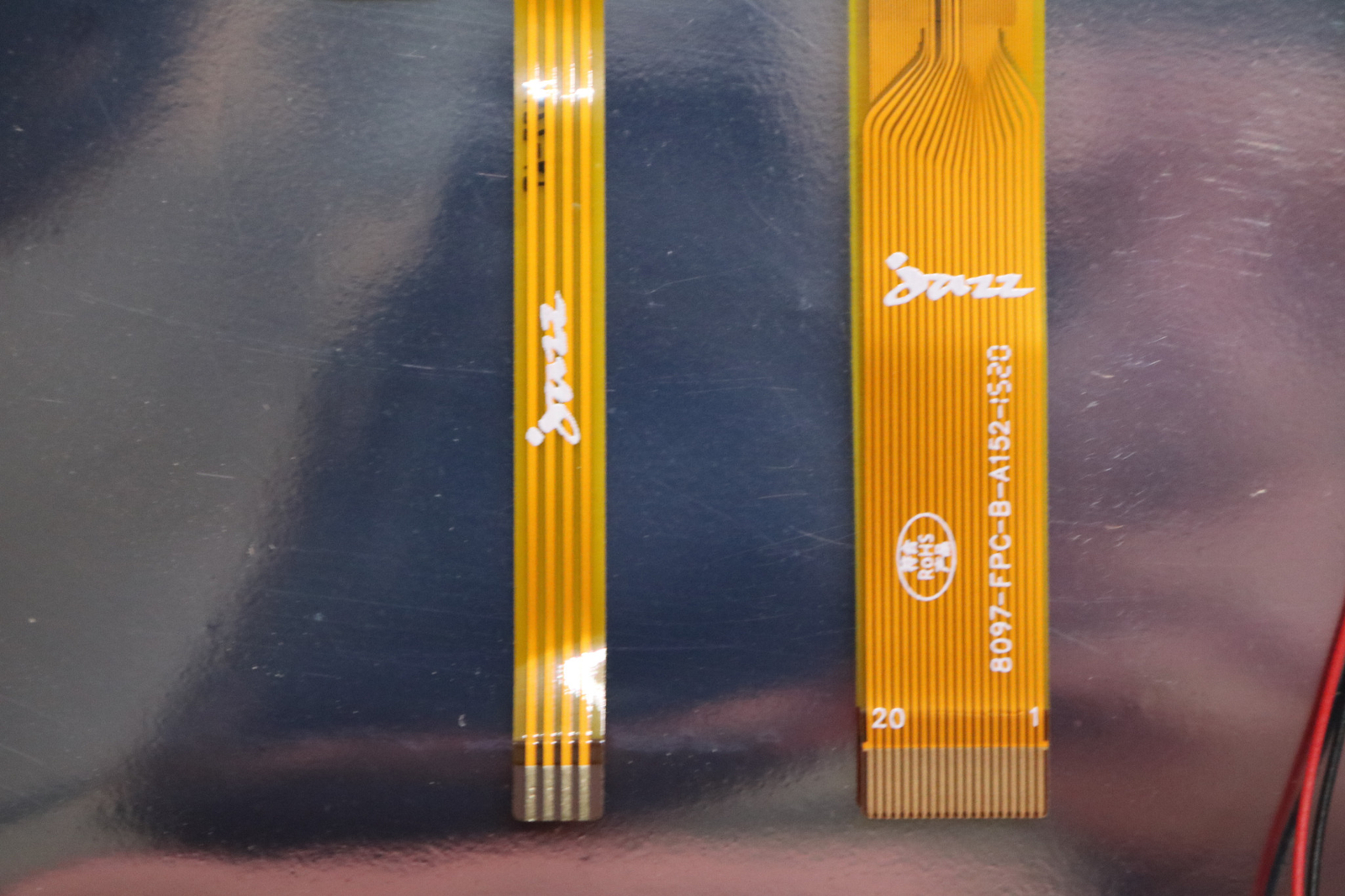

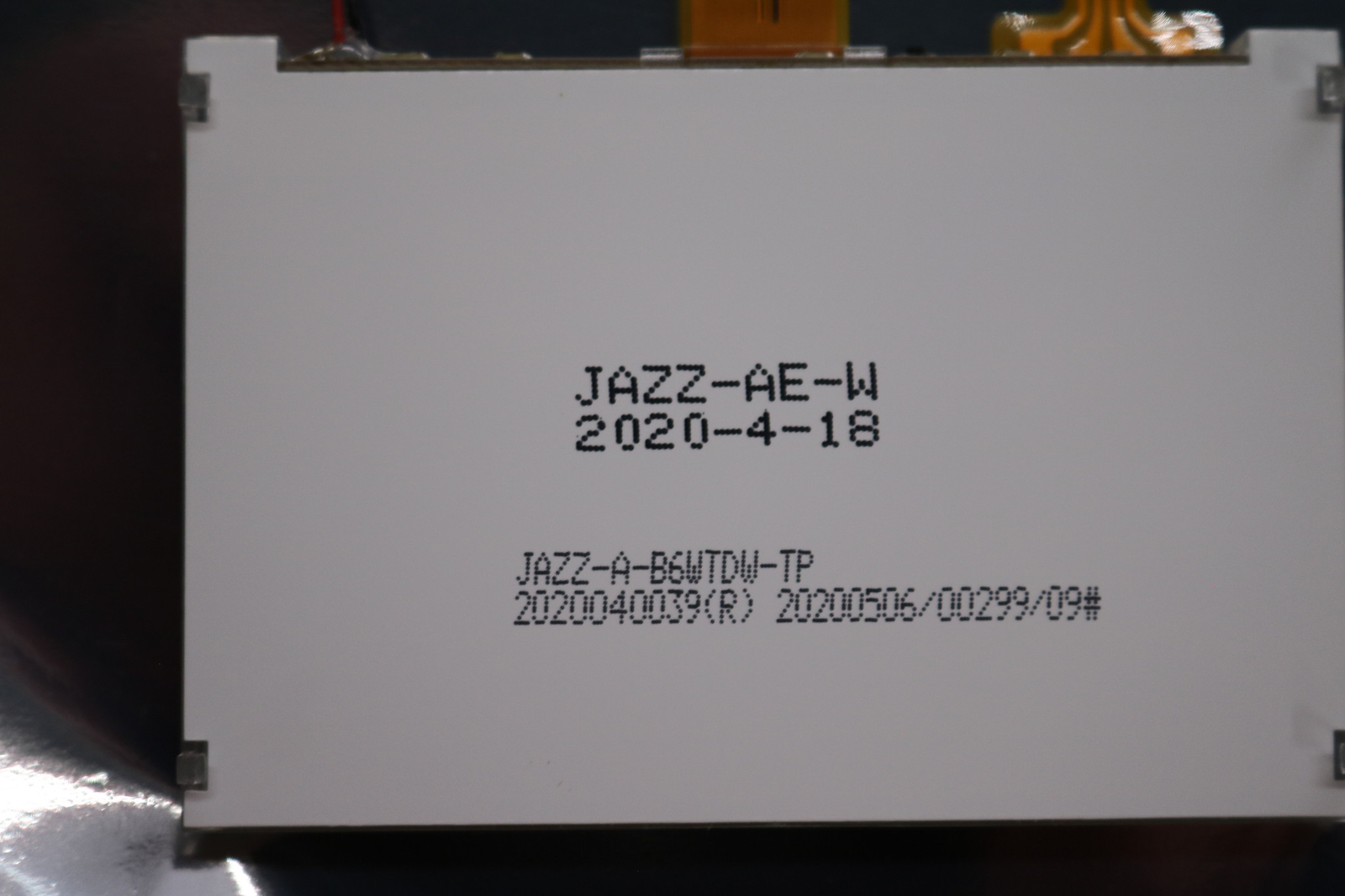

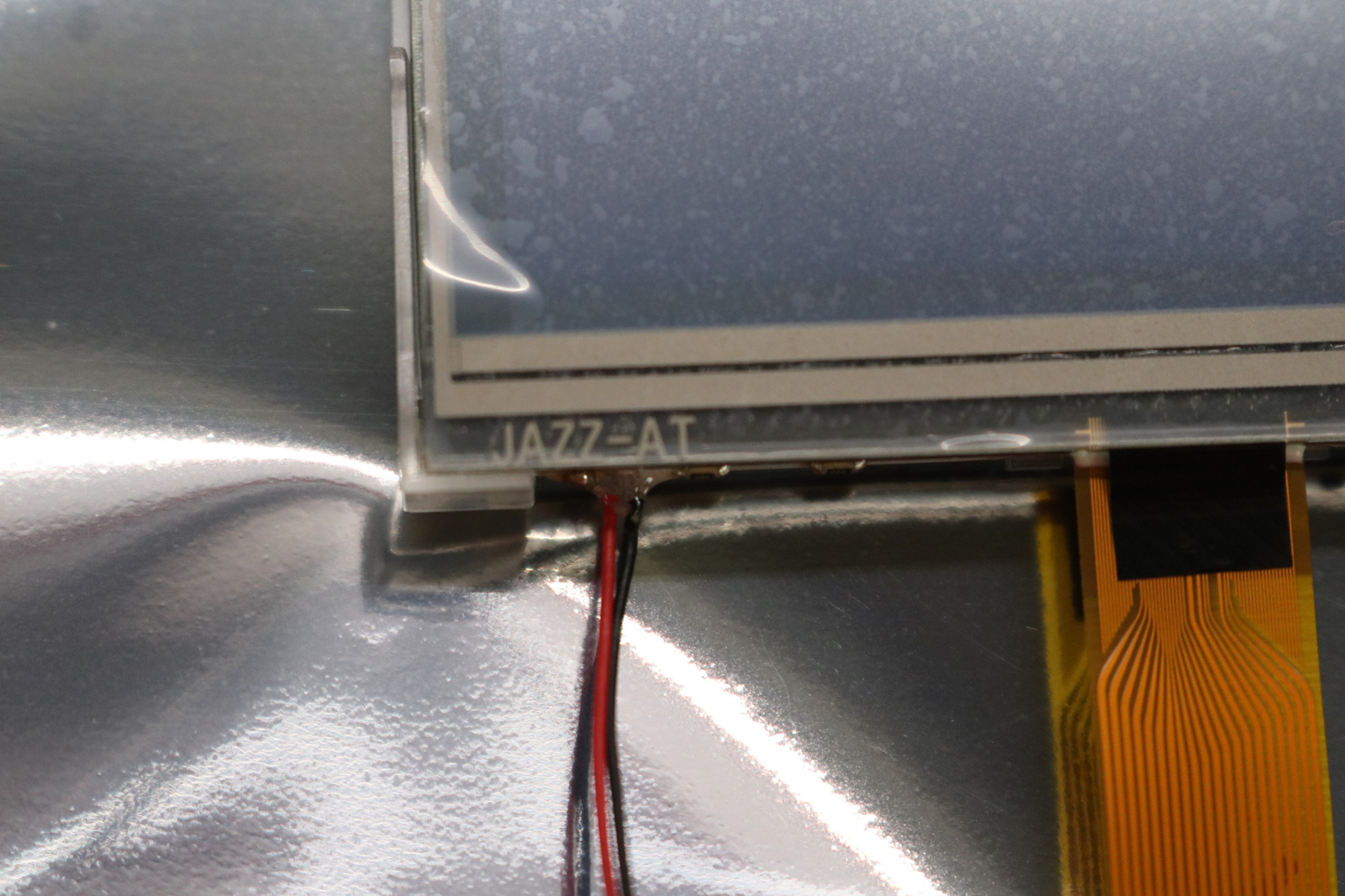

Jazz Replacement Monochrome LCD Backlit Graphic COG 128×64 Arduino Touch Panel Jazz Replacement Monochrome LCD LCD+BL+RTP Graphic COG 128×64JAZZ Monochrome Graphic LCD ModuleDiagonal Dimension: 2.7 InchResolution: 128 x 64 pixelsLCD mode: STN Negative Blue (JAZZ-AC-B)Polarizer: TransmissiveBacklight: White LED (JAZZ-AE-W)White on Blue BackgroundConnection: FPCIC Package Type: COGTouch Panel: Resistive (JAZZ-AT)JAZZ A-B6WTDW-TP is a combination of JAZZ-AC-B (LCD in STN negative blue mode), JAZZ-AE-W (white LED backlight) and JAZZ-AT (resistive touch panel. JAZZ-AC-B is a 2.7″ monochrome 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in STN Negative Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C). It has a six O’clock viewing direction and a transmissive polarizer recommended for applications that will be used indoor. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7567 or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.The highest quality product at the lowest price.STN Negative Blue6 o’clock Viewing DirectionOperating Temp: -20°C to 70°CStorage Temp: -30°C to 80°CTransmissiveCOG Type (Chip on Glass)ROHS Compliant If there's something you're not sure about or have a question about anything, just send us a message by clicking "Ask a question" below the listing. Free Shipping is only for the inner 48 states (Large Freight Shipments Do Not Apply). ,
