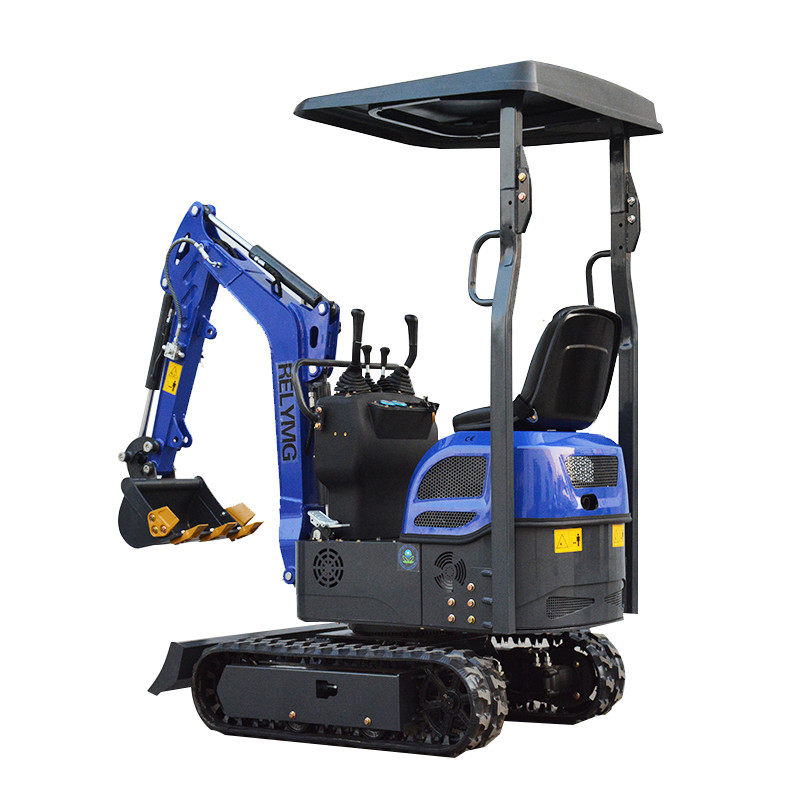

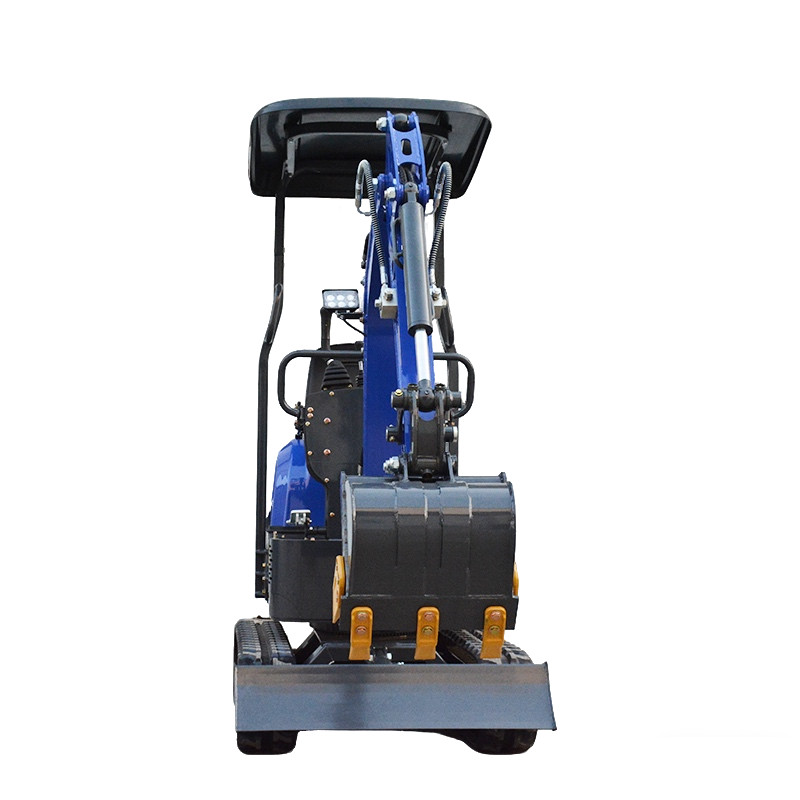

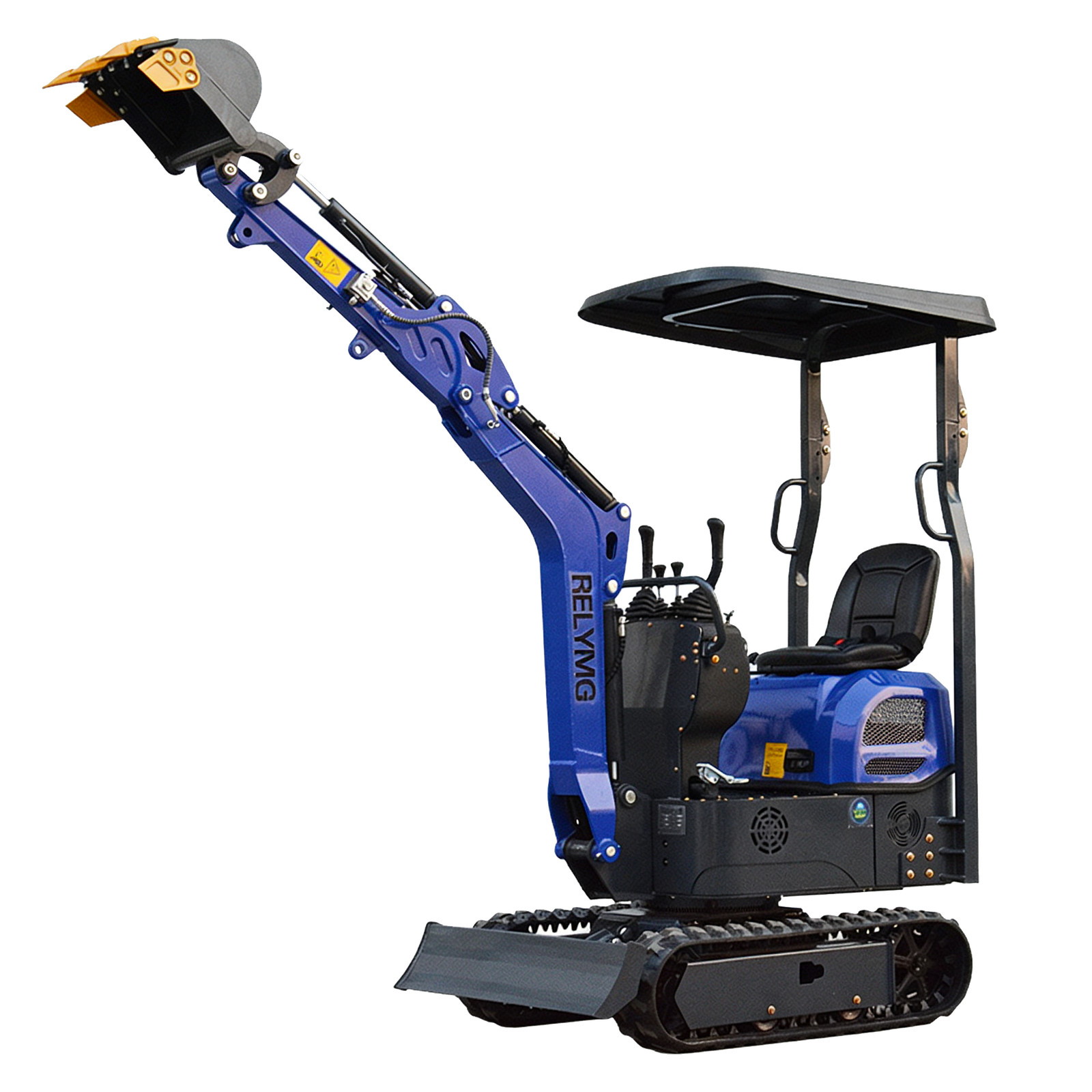

Free Shipping 13.5HP Mini Excavator 1 TON B&S EPA Engine Hydraulic Thumb Digger
USD 4898.99 USD
Specifications
| Engine Model | Briggs & Stratton |
| Track Width | 180 mm |
| Minimum Ground Clearance | 110 mm |
| Max Dig Depth | 5' - 6' |
| MPN | 14U |
| Bore × Stroke | 90 mm × 66 mm |
| Climbing Ability | 30° |
| Equipment Type | Mini Excavator |
| Bucket Capacity | 0.025 m³ |
| Serial Number | 14U |
| Maximum Digging Distance | 3005 mm |
| Ground Pressure | 21 kPa |
| Model Year | 2025 |
| Unit Type | Unit |
| Turning Radius | 780 mm |
| Working Pressure | 19 MPa |
| Net Horsepower (HP) | 10 - 20 |
| Digging Force | 4.3 KN |
| Rated Speed | 3060 rpm |
| Fuel Tank Capacity | 6.6 L |
| Maximum Digging Height | 2786 mm |
| Track Length | 1220 mm |
| Ground Contact Length | 900 mm |
| Rated Torque | 28.5 N·m |
| Operating Weight | Under 3,000 lbs |
| Overall Height (roof) | 2222 mm |
| Maximum Digging Depth | 1764 mm |
| Make | RELYMG |
| Displacement | 420 cc |
| Oil Capacity | 1.1 L |
| Maximum Dumping Height | 1961 mm |
| Overall Length | 2101 mm |
| Overall Width | 940 mm |
| Model | B&S EPA Engine |
| Rated Power | 9.92 KW |
| Counterweight Ground Clearance | 384 mm |
| Overall Height (seat) | 1426 mm |
| Travel Speed | 2.2 km/h |
| Country Of Origin | China |

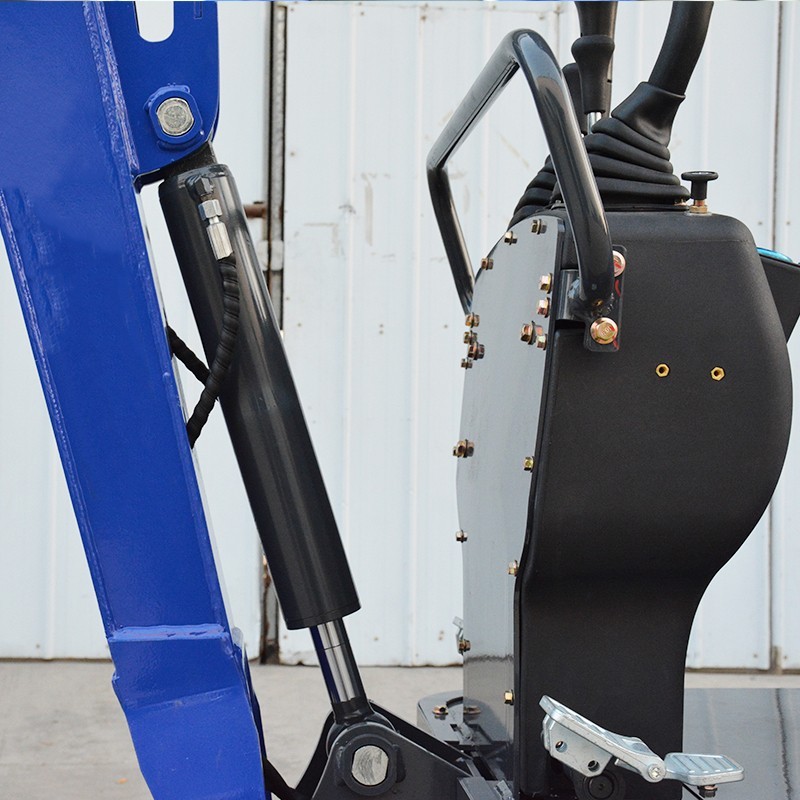

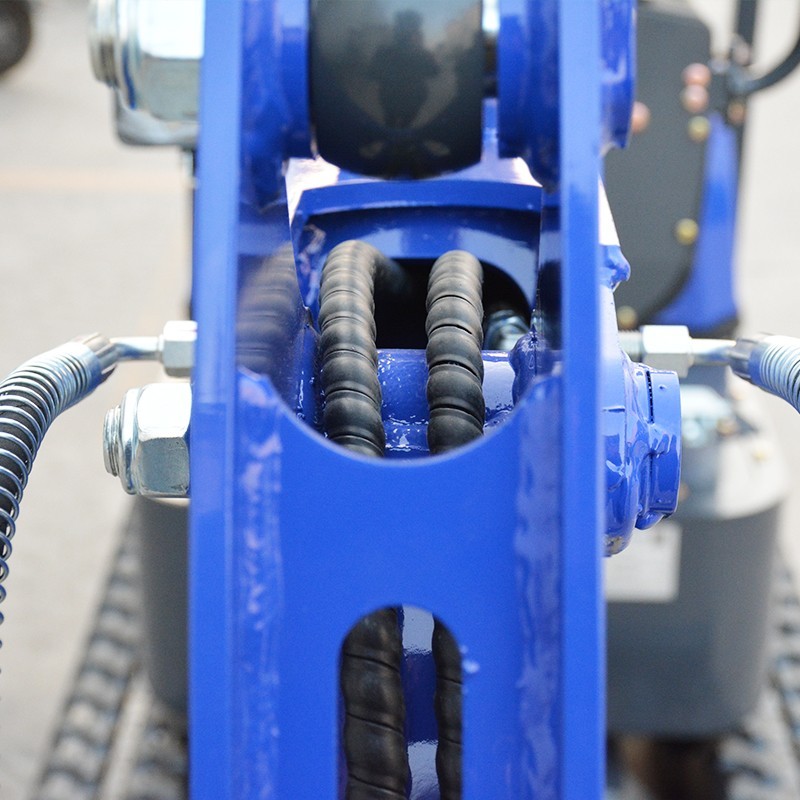

Hydraulic oil radiator: maintains stable oil temperature, prevents hydraulic oil deterioration and component wear, and avoids shutdown failures caused by high temperature. Upper boom cylinder: The upper cylinder design optimizes torque distribution, providing stronger initial digging force and boom lifting force, significantly reducing the risk of external impact and crushing injuries, and effectively extending service life.
