Electric Motor Razor E300 Upgrade Currie Technologies 500W 24V XYD-6B2 w Base
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Currie |
| Type | DC Brush |
| Motor Model | XYD-6B2 |
| Wattage | 500 |

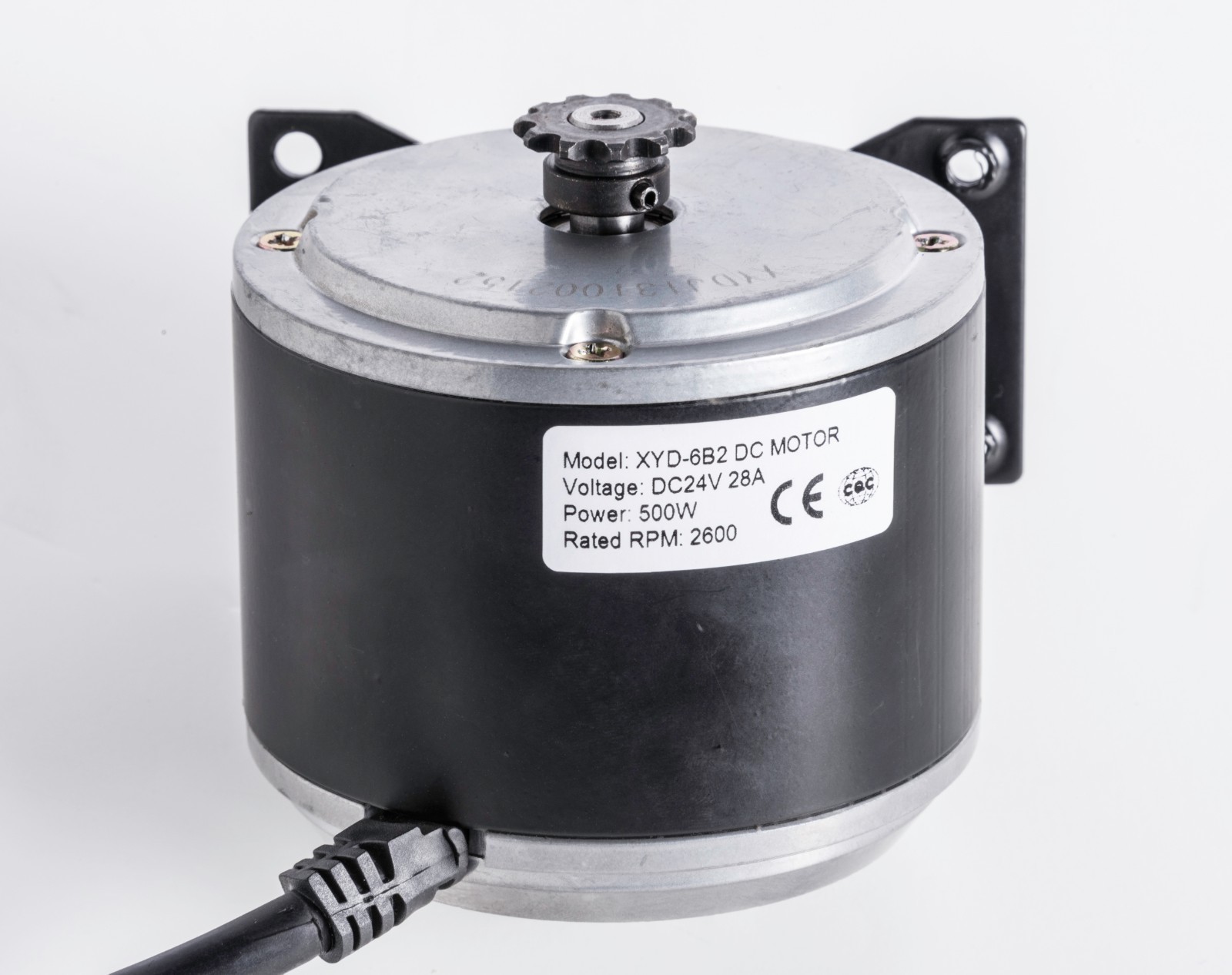

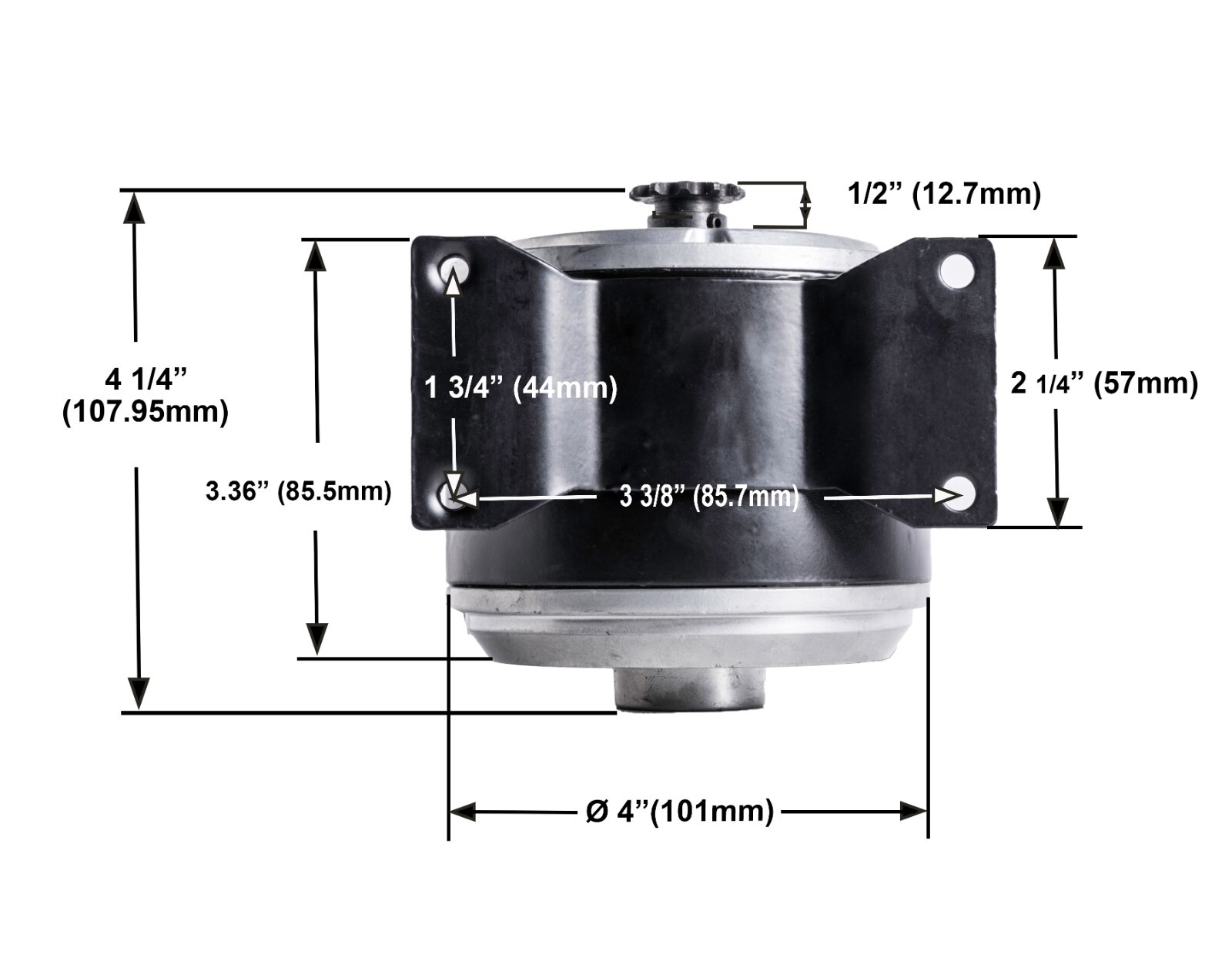

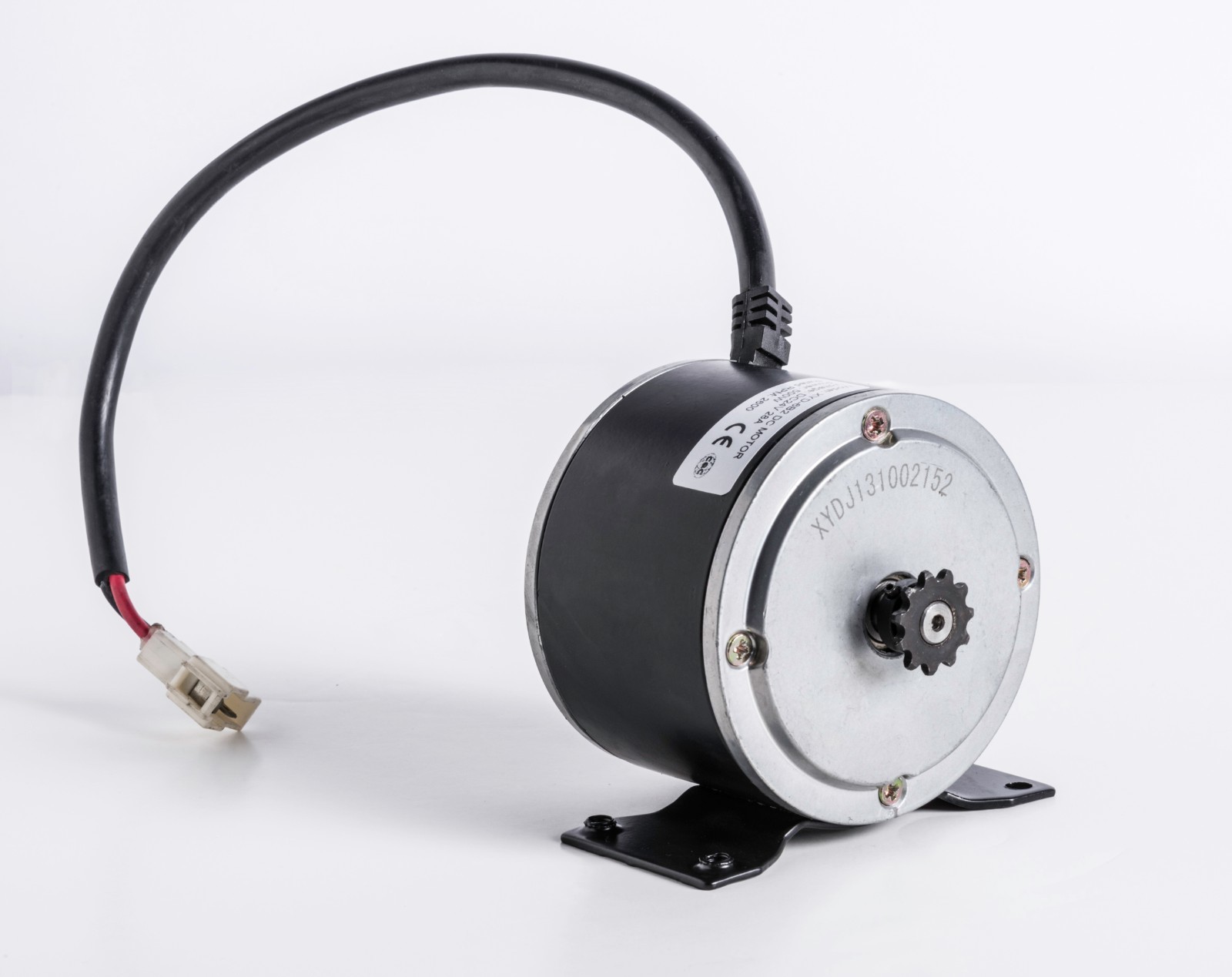

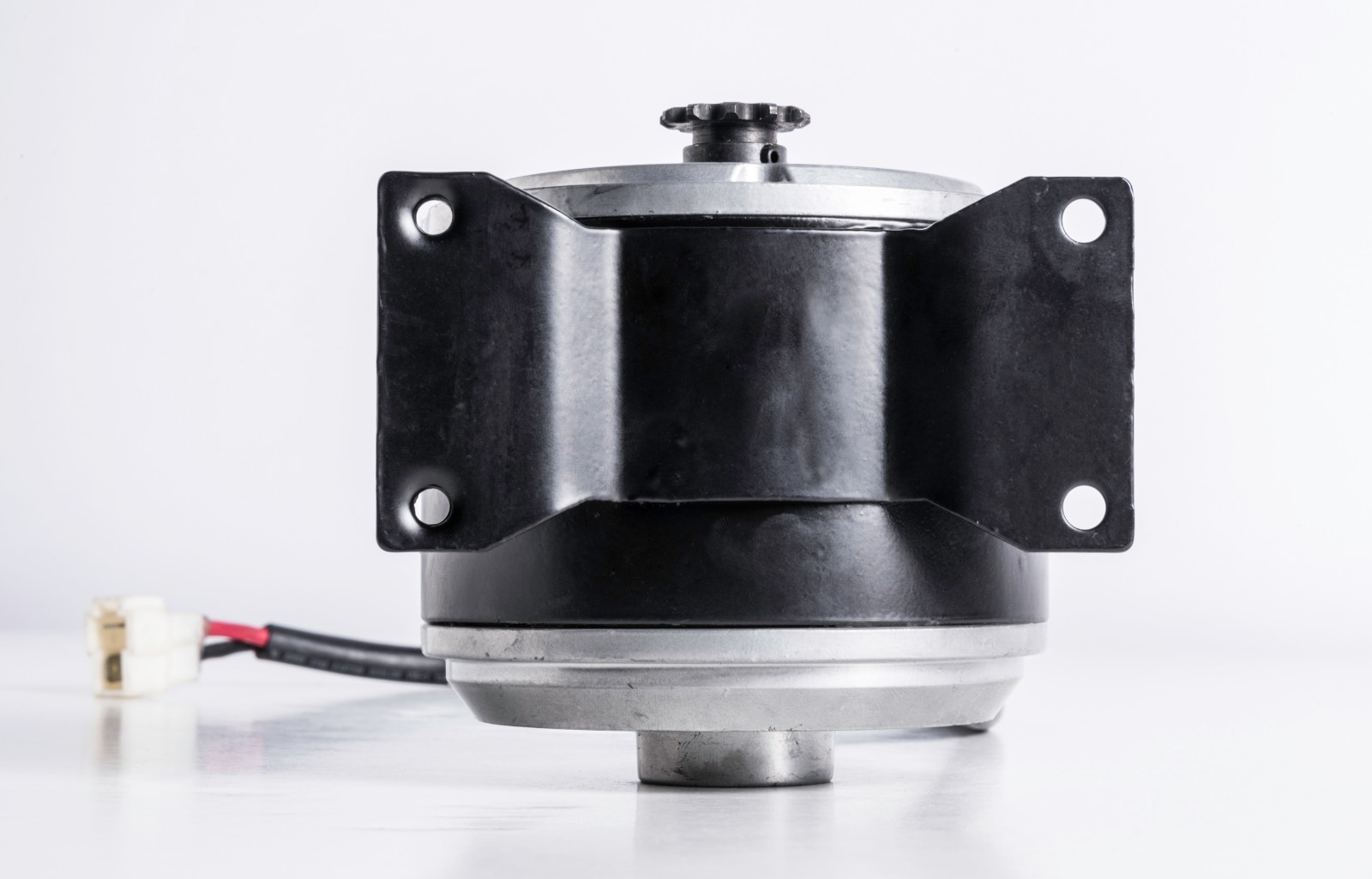

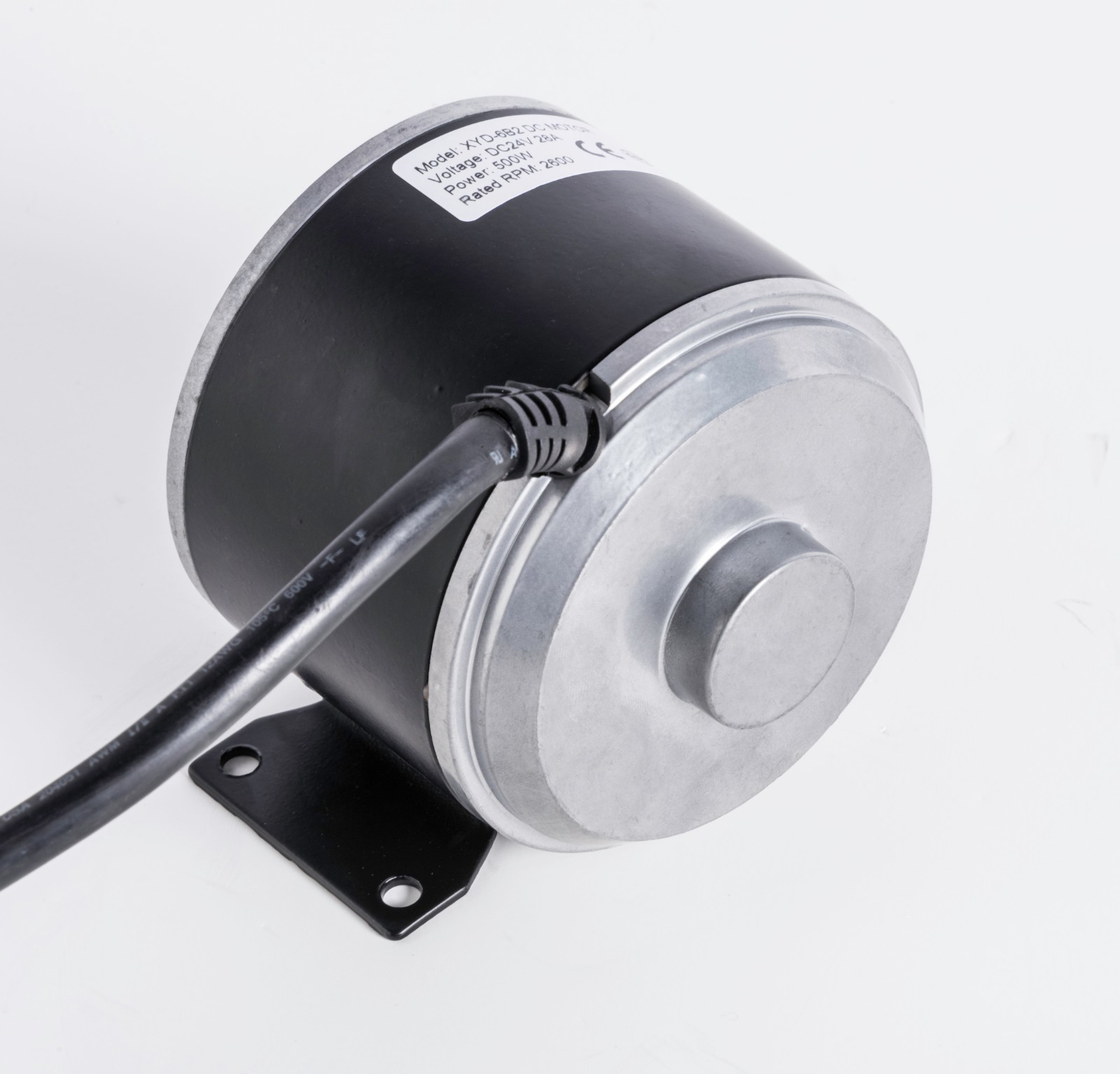

500 WATT 24 VOLT DC MOTOR XYD-6B2 Currie TechnologiesWith Mounting BracketUS SELLER 24 volt 500 watt XYD-6B2 electric motor with an 11 tooth #25 chain bracket from Currie Technologies. This is the motor that was used on the chain drive versions of the Schwinn 400 and IZIP 400 electric scooters.This motor uses a universal mounting bracket, and it can be used on most 24 volt electric scooters factory equipped with 200 watt to 500 watt motors.Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. Brand new with warranty. - Motor for electric scooter can be used for mini bike quad and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts.- 24 Volt 500 watt motor from Currie Technologies. - Standard base plate. - This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Currie Technologies part number: MT-24450-001 or XYDJ131002216 Motor Specs:Model: XYD-6B2 MotorType: BrushVoltage: 24 volt DCRated Speed: 2600 RPMRated Current: 22 ampSprocket: 11 tooth #25 chain sprocketOutput: 500 WattsCase Length: 3-13/16" (97 mm)Case Diameter: 3-15/16" (100 mm)Drive Shaft Length: 3/8" (10 mm)Drive Shaft Diameter: 3/8" (10 mm)Bolt Hole Distance (Adjacent): 3-3/4" (95 mm)Bolt Hole Distance (Cross Bracket): 1-5/8" (42 mm) Compatibility:eZip E-4.0eZip E-400IZIP I-400Schwinn 4Schwinn S400 Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you. ___________________________________________________________________________________________________________________ We also sell other electric scooter parts and mini Bikes Most orders ship same day from our warehouse Warranty: 1 year from purchase date. We will only replace motors that do not work out of the box. We test all motors before shipping. We will not replace burnt out motors.
