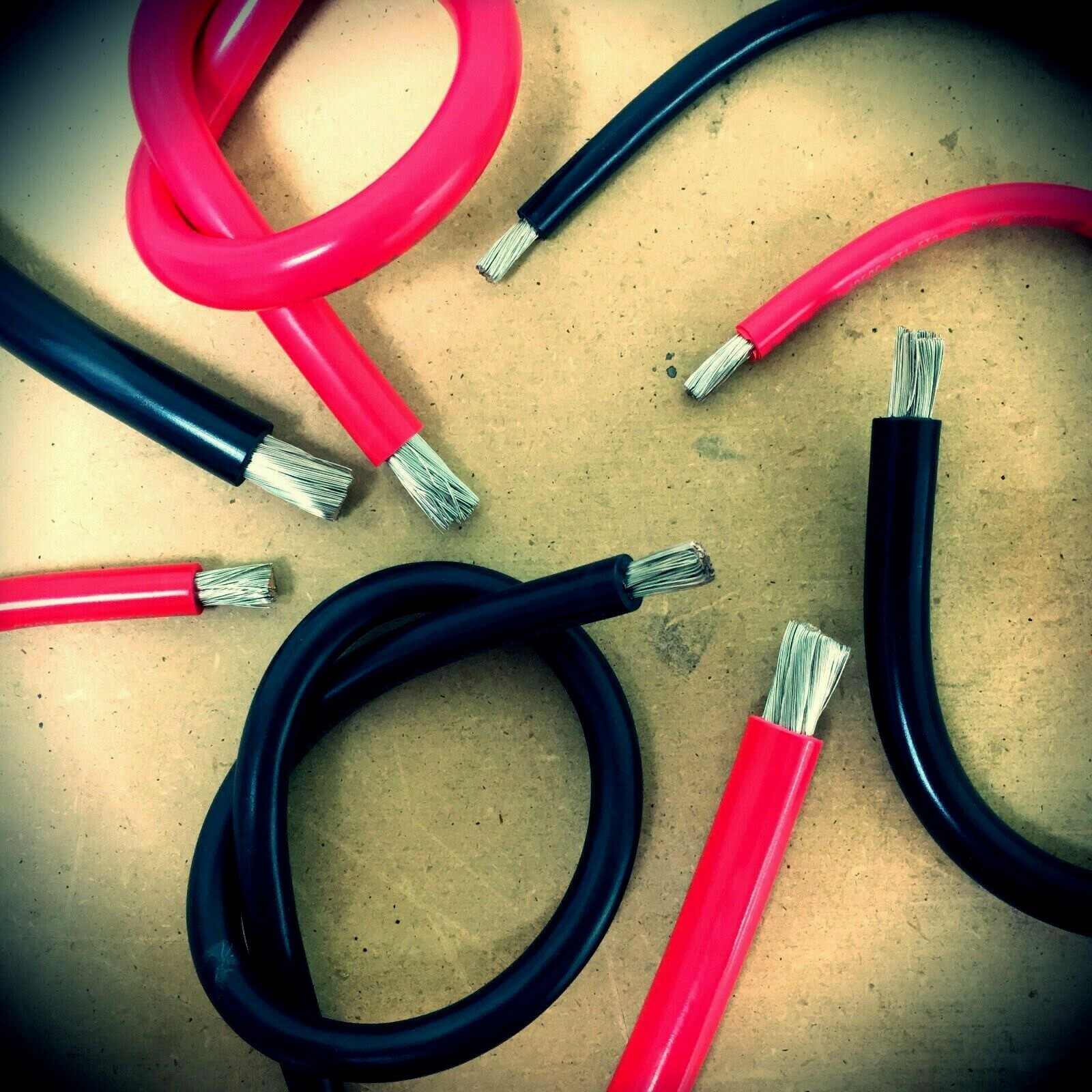

Battery Cable Marine Grade Tinned Copper 8,6,4,2,1,1/0,2/0,4/0 AWG By the Foot
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Battery Cables USA |
| Sheath Color | Red or Black |
| Length Type | Cut by the foot |
| Conductor Material | Copper |
| MPN | BC-GRP |
| Structural Build | Flexible |
| Country/Region Of Manufacture | United States |

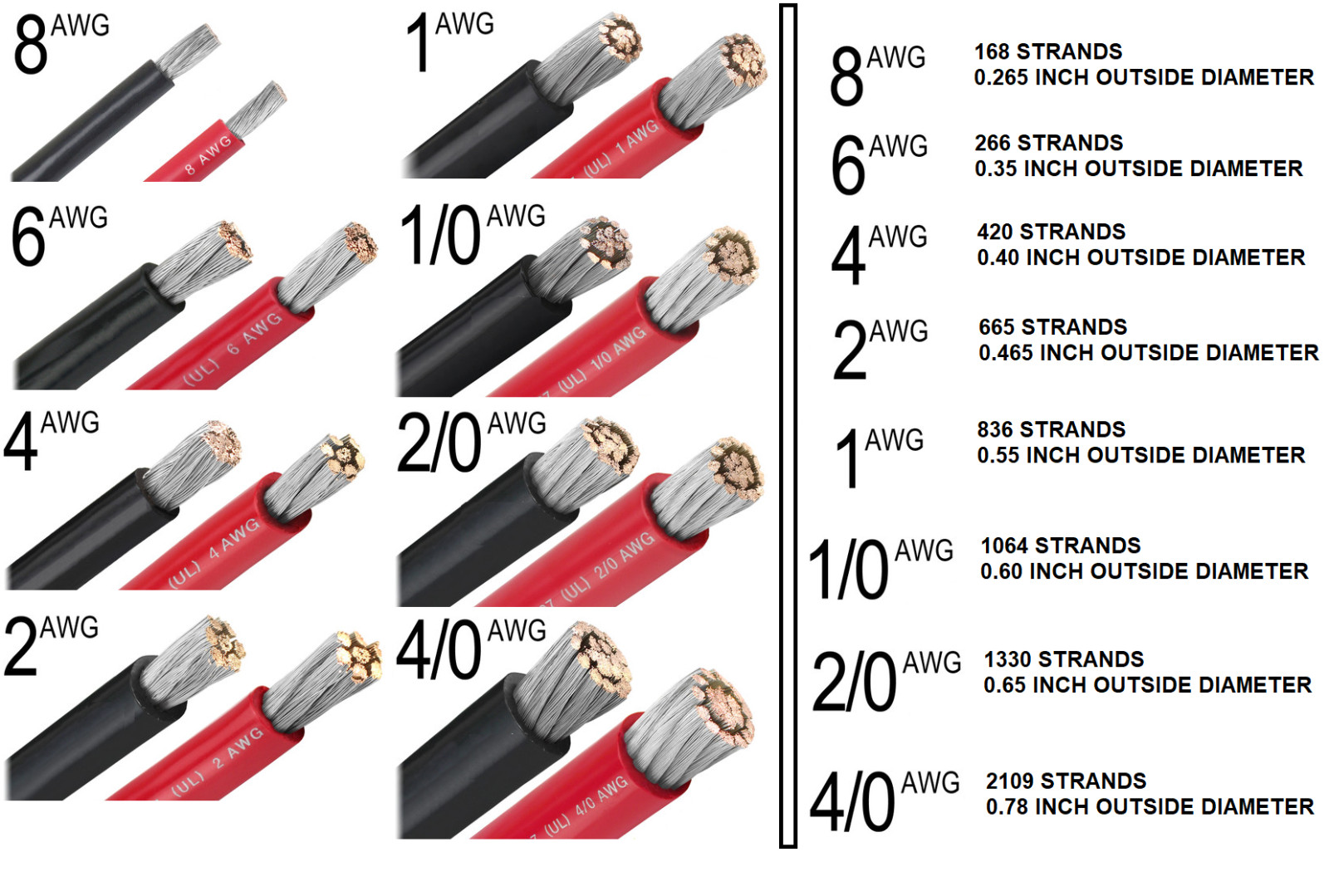

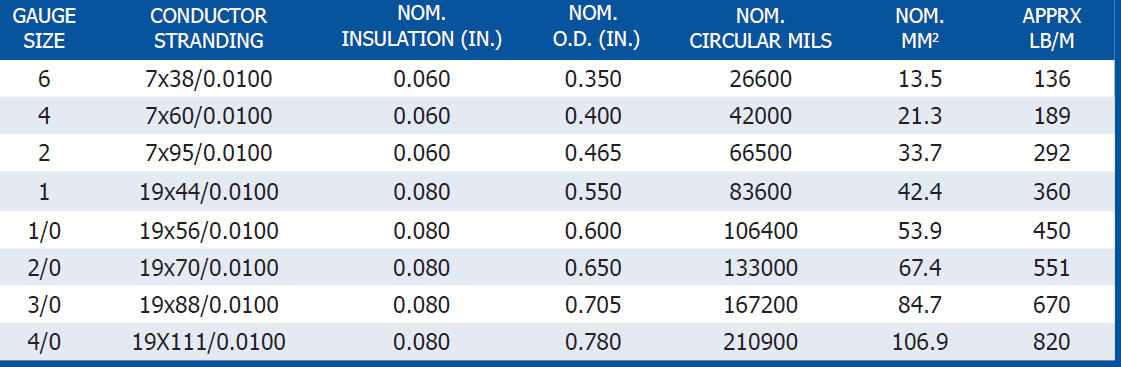

Marine Battery CableTinned Copper Marine Grade - in Red or Black sold by the foot Sizes Available to choose from: 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWGChoose the wire size and color then enter the number of feet you want so if you put in 16 it will be a 16 foot long piece and if you put in 50 it will be a 50 foot long piece etc. Use ADD TO CART and add everything to one cart BEFORE checkout to get combined shipping.Our marine battery cable is Made in the USA from pure electrolytic copper in a fine stranded, type III rope stranding. You choose the wire size, color and length by the foot that you need...easy! Each strand of copper is electro tin plated which keeps the copper from corroding. Tinned copper is preferred for long life of the copper conductor and is great in the marine environment as well as automotive! ***IMPORTANT!!! Don't get suckered into buying copper plated aluminum (known as CCA copper clad aluminum) as our REAL COPPER CABLE will HANDLE MORE POWER!!!*** The marine battery cable insulation is flexible and durable designed to withstand water, salt, gas and oil unlike more commonly available welding cable. Here are the approximate Outside Diameter of Insulated UL1426 Marine Single Conductor Wires: 16 AWG 1/8 inch14 AWG 9/64 inch 12 AWG 5/32 inch10 AWG 7/32 inch8 AWG 5/16 inch6 AWG 11/32 inch4 AWG 13/32 inch2 AWG 15/32 inch1 AWG 17/32 inch1/0 AWG 9/16 inch2/0 AWG 5/8 inch3/0 AWG 11/16 inch4/0 AWG 13/16 inch Marine Battery Cable Features:Finely stranded tinned copper conductor (Type III)Full AWG Size (American Wire Gauge) Color coded PVC insulation (See chart for specifics per gauge)Temperature Range: -20°C to 105°CVoltage Rating: up to 600V (AC or DC)Resistant To: Acid, Alkalis, Abrasion, Flame, Gasoline, Oil, Ozone, Moisture, Fungus COMPLIANCES:UL Standard 1426 (BC-5W2)CSA: TEWABYC: E-8.14, E-9.14Coast Guard: 33 CFR part 183 Subpart INMMARoHS Compliant Allowable Amperage of Current Carrying ConductorsUnder 50V as suggested by the ABYC Size Sq AWG SAE Ampacity Outside / Inside of Engine Space AWG mm CM area CM area OutsideInside180.81,6001,53720171612,6002,33625211424,1003,70235301236,5005,833453810510,5009,34360518816,80014,810806861326,60024,53812010242142,00037,36016013623466,50062,45021017814283,69077,7902452081/053105,60098,9802852422/068133,100125,1003302804/0107211,600205,500445378
