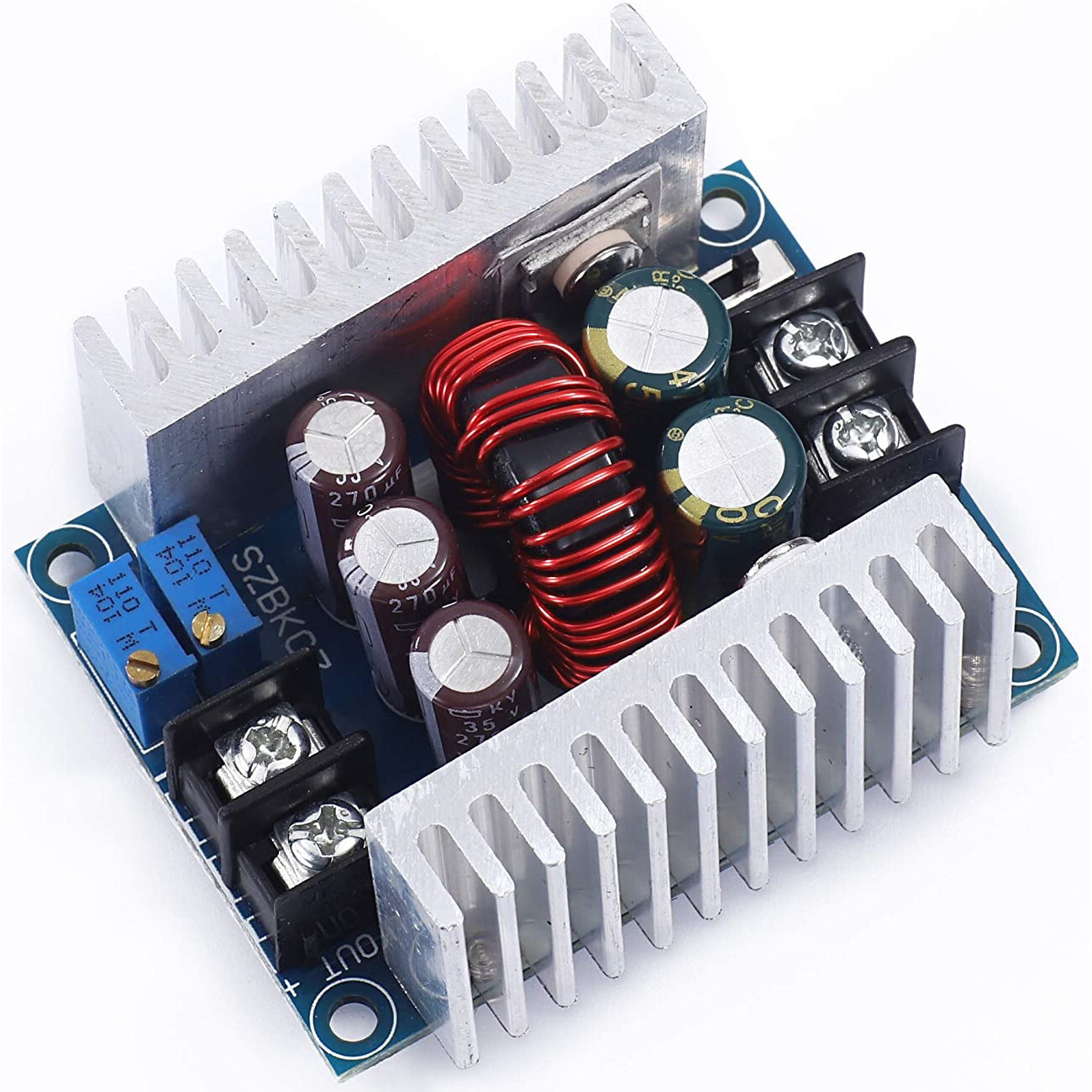

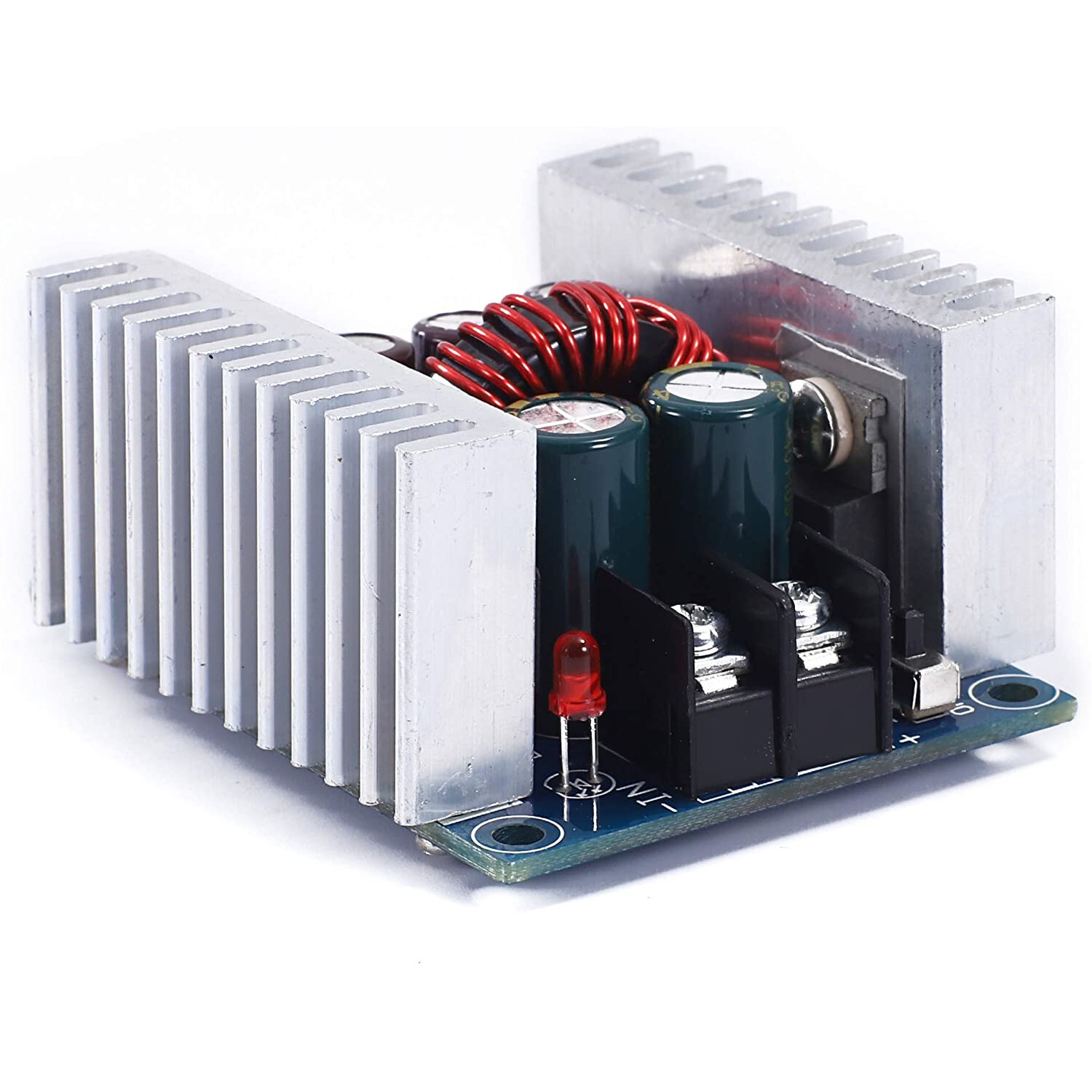

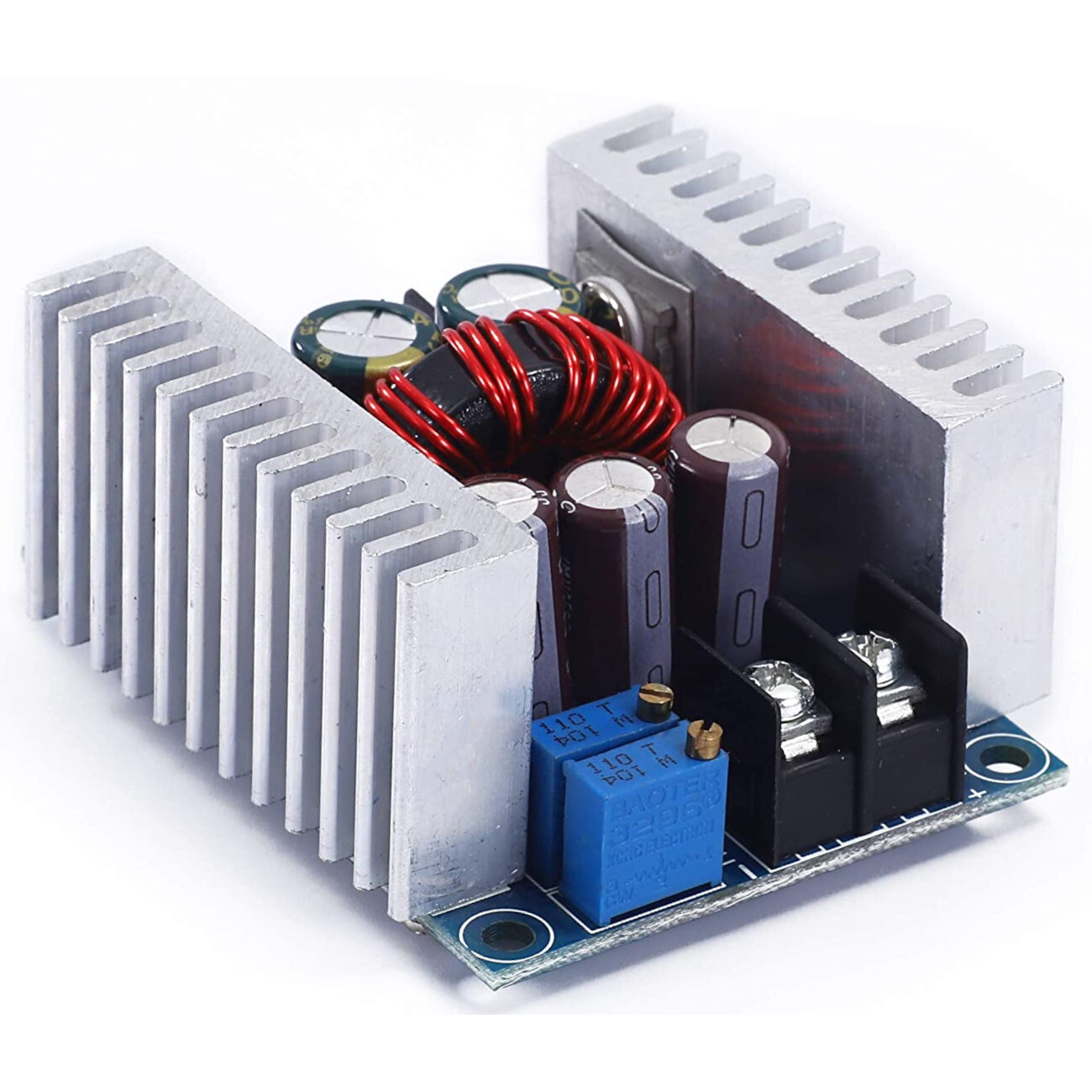

20A 300W Synchronous Buck Module DC Step Down Voltage CC Power 5V 12V 24V 36V
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | JacobsParts |
| MPN | DCMOD-L |
| Current Conversion | DC to DC |
| Output Voltage Rating (DC) | 36 V |
| Nominal Current Rating | 20 A |
| Ripple & Noise | 50 mV |
| Nominal Power Rating | 300 W |
| Country/Region Of Manufacture | China |

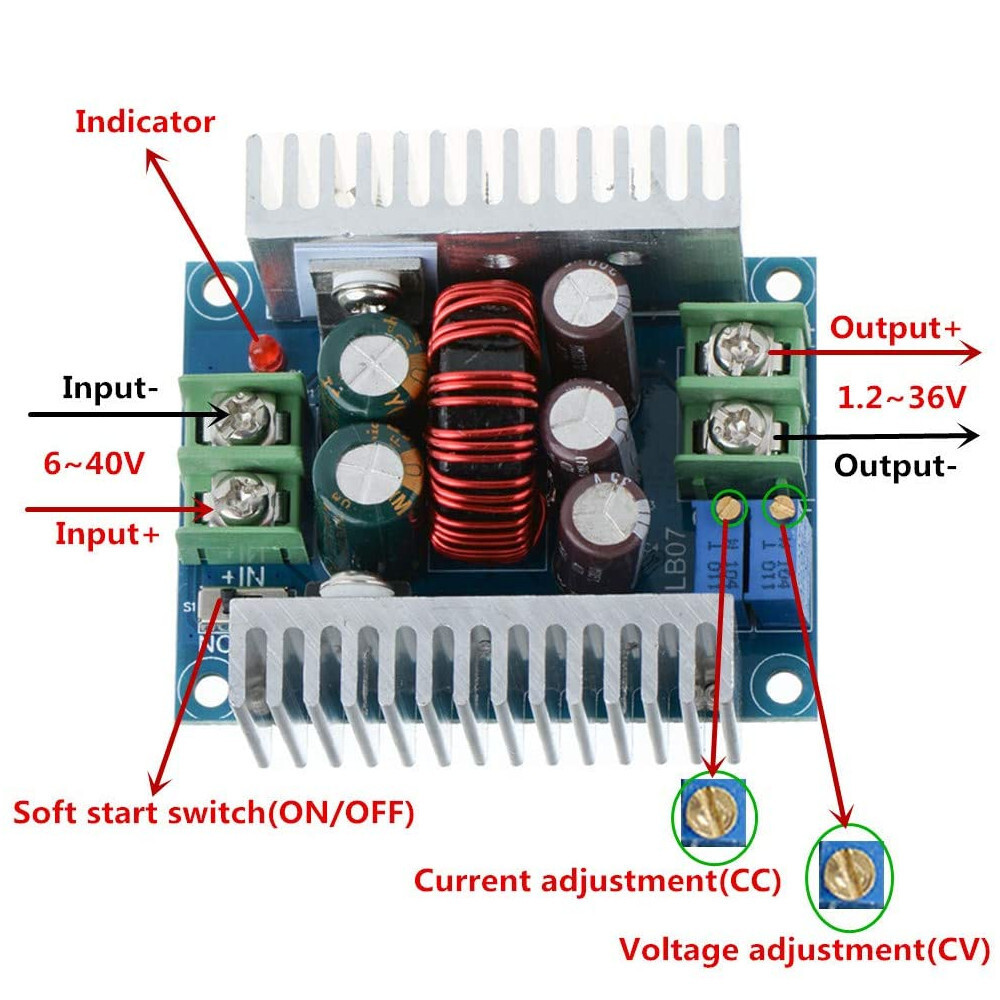

20A 300W Synchronous Buck Module DC Step Down Voltage CC Power 5V 12V 24V 36V Maintain stable output voltage and limit the output current over a range of input voltages. Great for general voltage conversion, battery charging, powering raw LEDs, automotive electronics, battery conversions, micro-controllers, and electronic projects. Input Voltage: 6-40V DC • Output Voltage: 1.25-36V DC • Max Load: 300W/20A Peak, 15A Sustained Minimum Dropout: 3V • Conversion Efficiency: Up to 96% • Short-circuit protection • Non-isolated Dimensions: 60x53x27mm • LM25116 IC • 150KHz Switching Frequency • 50mV ripple Input must be at least 3V more than the output voltage. Applying reverse polarity voltage to the input or output may damage the module. A fan is required if the module temperature exceeds 65°C Product Guarantee We offer a 30 day return policy and a one year warranty. Buy with confidence! Item Location All orders ship from Indianapolis, IN, USA
