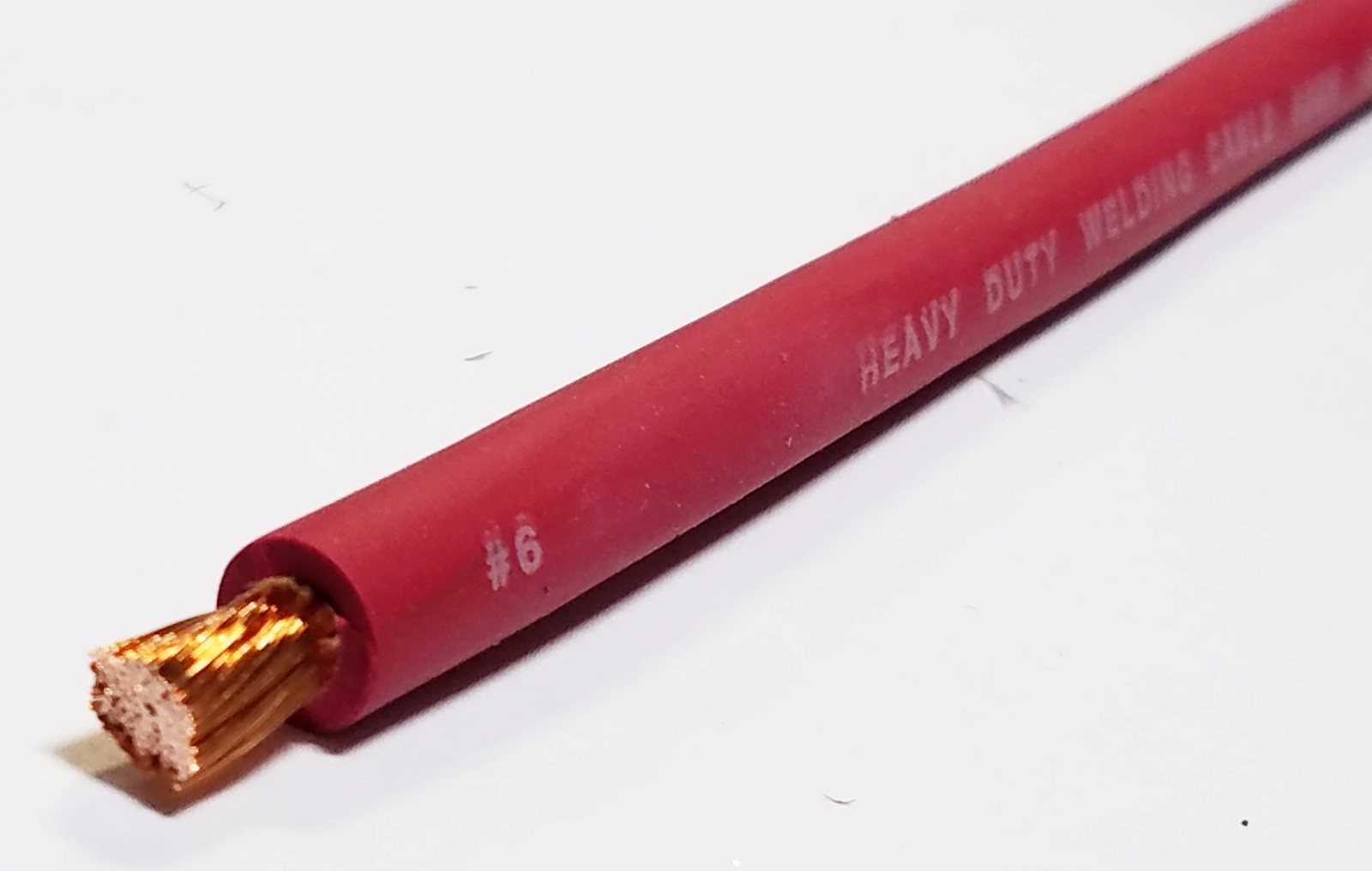

20 FT 6 gauge AWG EXCELENE EPDM 105c WELDING CABLE RED MADE IN USA
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Southwire/Excelene |
| Item Type | Welding Cable |
| MPN | WC-6G-03 |
| Country/Region Of Manufacture | United States |
| Temperature Rating | -50OC to 105OC |
| Ozone, Sun, Weather, And Chemical Resist | Yes |
| Insulation Thickness | 0.065'' Nom. |
| PN | WC-6G- |
| Strand Material | Pure Copper |
| Foot Marked | Yes |
| Insulation Material | EDPM |
| Model | 6 AWG |
| DC Resistance Per Conductor | @ 20OC 0.440 |
| Strand Count | 259 |
| Country//Region Of Manufacture | United States |
| Operating Voltage | 600V Max |
20 FT 6 AWG HEAVY DUTY EPDM WELDING CABLE MADE IN THE USA. LENGTH: 20 FTCOLOR: REDCONSTRUCTION: This cable consists of one bare copperconductor with integral insulation and jacket.APPLICATION: Welding Cable ApplicationsConstruction Parameters:Conductor #6 Bare CopperStranding 7x37/0.0098 (13mm2)Insulation Material EPDMSeparator/Wrap Tape SeparatorInsulation Thickness 0.065'' Nom.Insulated Conductor Diameter 0.305" Nom.Number of Conductors 1 Electrical Properties:Temperature Rating -50OC to 105OCOperating Voltage 600V MaxDC Resistance per Conductor @ 20OC 0.440 Ohms/1M Features: Temperature Rating -50° C to 105° CEthylene Propylene Rubber (EPR)Annealed stranded bare copper per ASTM B-172Foot marked for easy length identificationOzone, sun, weather, and chemical resistantApplications: May used in accordance with National Electric Code Article630 Electric Welders.Designed for use as welding leads from the secondary side ofthe power source - typical of arc welders and weldinggeneratorsAdditional uses may include flexible lead cable; electrodeto welder unit, battery cables, and temporary and permanentlead cablesIndustry Approvals: ROHS Compliant
